Caster is one of the three critical angles in wheel alignment (alongside camber and toe) that significantly impacts vehicle stability, steering behavior, and handling. Below is a detailed explanation based on technical principles and practical applications:
1. Definition and Measurement
Caster refers to the forward or backward tilt of the steering axis when viewed from the side of the vehicle. The steering axis is an imaginary line connecting the upper and lower pivot points of the suspension (e.g., ball joints or kingpin).
- Positive caster: The steering axis tilts toward the rear of the vehicle (e.g., the upper pivot is behind the lower pivot). This is common in modern vehicles .
- Negative caster: The steering axis tilts toward the front of the vehicle .
For example, a shopping cart’s wheels naturally align under the handle due to positive caster, similar to how car wheels self-center .
2. Functional Impact
Steering Stability and Self-Centering
- Positive caster creates a self-aligning torque, helping the steering wheel return to the center after a turn. This “returnability” improves directional stability, especially at high speeds .
- The mechanical trail (distance between the steering axis and tire contact patch) increases with positive caster, enhancing straight-line tracking .
Handling and Steering Effort
- Positive caster:
- Advantages: Better stability, reduced steering wander, improved cornering balance .
- Disadvantages: Increased steering effort (especially without power steering) and potential for shimmy at high speeds if excessive .
- Negative caster:
- Rarely used in modern vehicles but may reduce steering effort in older cars without power steering .
- Compromises stability, leading to unpredictable handling .
Load Distribution
Positive caster projects the vehicle’s weight ahead of the tire contact patch, creating a “caster lead” effect where the wheels naturally follow the load path. This improves stability but amplifies road shocks .
3. Vehicle-Specific Applications
Typical Caster Ranges
- Passenger cars: 3°–5° positive caster .
- Performance/racing vehicles: Up to 7° or more for enhanced camber gain during cornering and traction .
- Heavy-duty vehicles: Lower angles (e.g., 1°–3°) to balance steering effort and stability .
Cross-Caster Design
Some vehicles use cross-caster (uneven caster angles on left/right wheels) to improve safety. For example, if control is lost, the vehicle drifts toward the roadside rather than into oncoming traffic .
4. Symptoms of Incorrect Caster
- Excessive positive caster:
- Heavy steering, high-speed shimmy, uneven tire shoulder wear .
- Insufficient/negative caster:
- Poor straight-line stability, wandering, reduced self-centering .
- Asymmetric caster:
- Vehicle pulls to the side with less positive caster .
5. Adjustment Considerations of tire caster
- Non-adjustable systems: Many modern vehicles have fixed caster angles. Correcting camber/toe or addressing suspension damage (e.g., bent components) may indirectly resolve caster issues .
- Adjustable systems: Achieved via eccentric bolts, adjustable control arms, or shims. Symmetry between left/right wheels is critical .
6. Real-World Examples
- The Honda Jazz uses positive caster for stability in urban driving .
- F1 race cars employ extreme positive caster (>10°) to optimize dynamic camber during aggressive cornering .
Conclusion
Caster is a foundational element of wheel alignment that balances steering effort, stability, and handling precision. While it has minimal direct impact on tire wear, its role in directional control makes it indispensable for both daily drivers and high-performance vehicles. Proper alignment ensures optimal load distribution, predictable handling, and driver safety.
For specific adjustments, always consult manufacturer guidelines or a certified technician, as improper caster settings can compromise vehicle dynamics
What is caster on alignment？
Caster alignment refers to the process of adjusting the angle at which the casters (wheels) are mounted to a piece of equipment or furniture. Proper caster alignment is crucial for ensuring smooth movement, stability, and longevity of the casters and the object they are attached to.
Caster Wheel Alignment Meaning
What is wheel caster?

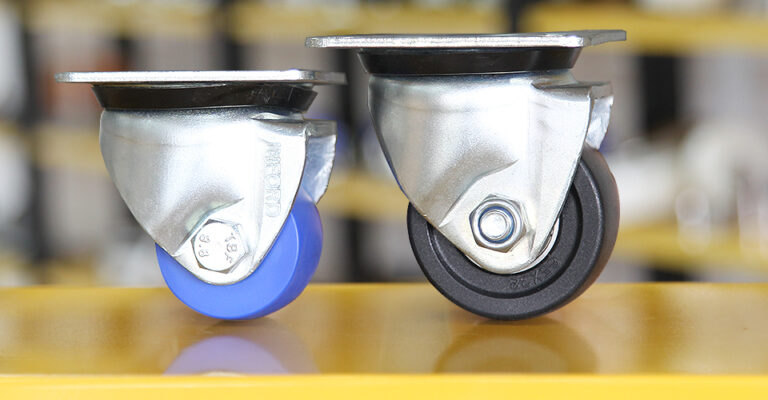

Wheel caster is a mobile device with wheels, usually installed at the bottom of equipment, furniture, or carts, used to achieve easy movement, steering, and carrying of heavy objects. Common types include fixed (straight only), rotary (360 ° steering), and brake function foot wheels. The material (such as nylon, rubber, metal) and size are selected according to the load-bearing requirements and usage scenarios (such as industrial, medical, and household).
